Explanation of Weighted Translation#

Intro#

This gives an example of how to generate a lower-zone-weighted translation between two zoning systems (Z1 and Z2). A spatial translation between Z1 and Z2 is much simpler and simply accounts for area overlap. Weighted translation considers where the weighted value is in each zone.

For example, if a larger zone was split exactly in half spatially by a smaller zone, but one half contained a block of flats and the other a park, different translations would be given depending on the method. Spatially, the larger zone is simply split in 2 exactly. If the translation was generated via a population weight, then the entire population weight of the larger zone would be placed into the smaller zone containing the flats, with none going to the park side of the larger zone. To give an example from figure 1, the left zone from Z1 is split into the left two zones from Z2, if done spatially, will give a 50/50 split. If, however, lower zones 1 and 2 contain a town, and the rest of the lower zones contain mainly rural land, then using a population or employment weighted translation would give a larger proportion to the top zone – containing the town – and a smaller proportion to the bottom, mainly rural, zone. In most cases this would be a more accurate representation of reality.

../_images/simple_weighted.png

Figure 1 - Simple weighted translation example#

Example#

In the above example, the lower zoning system nest within the larger zone systems, which nest within each other, giving a relatively simple translation. A more complicated example is described below. The description corresponds to figures 2 and 3 at the end of the document.

Generating “Tiles”#

First, the three zoning systems are overlayed on top of one another, this can be seen in Figure 2 below, creating the image in the bottom left corner. The lower zoning system is then split into “tiles” based on the following conditions:

  1. Where a whole lower zone fits into both higher zones. A “tile” is formed as the whole lower zone, as for lower zone 1 in Figure 2.

  2. Where a lower zone crosses zone boundaries for either or both higher zones. Its weighting is split by area and a new “tile” generated for each split. This is true for lower zone 10 which is evenly divided into 4 spatially, and therefore its weighting value is too.

The result of this step can be seen in Figure 3, in the bottom left, longest table. This table shows how the weights in the lower zoning system have been distributed across the new “tiles” that have been generated.

Simplify to “Overlap Zones”#

Next, the “tiles” are simplified into “overlap zones”. In this case, 8 overlap zones are generated and can be spatially seen in the bottom right of Figure 2. Mathematically the large table is taken and simplified into 3 new, smaller tables, shown in Figure 3.

  1. Overlap Table. Generated by summing the unique combinations of Z1 and Z2 zone names. This table also represents the values assigned to the spatial overlap shown in Figure 2.

  2. Z1 Table. Generated by summing the unique values of Z1 zone names. This table gives the total weighted value assigned to each Z1 zone.

  3. Z2 Table. Generated by summing the unique values of Z2 zone names. This table gives the total weighted value assigned to each Z2 zone.

These tables are represented in Figure 3 with some example numbers.

Translation Factors#

Finally, to convert these table into actual translation values between Z1 and Z2 the overlap values are divided by the total values for each zone. This generated translations values in both directions (Z1 -> Z2 and Z2 -> Z1). Where a zone from one zone system fits entirely within a zone from the other zone system, the weighting given is 1. This is true for zone π in Z2, which fits entirely within zone A in Z1. Otherwise, the factors sum to one over each zone.

It should be noted that the example translation given here is deliberately complicated (not many zones nest perfectly within each other). In many cases zones will nest better, and especially the lower zones should cross higher zone boundaries as rarely as possible for best results.

../_images/schematic_ex.png

figure 2 - Example diagrams of a zone translation schematically. Here the translation is between Z1 and Z2 with weighting from the ‘lower’ zone.#

../_images/table_ex.png

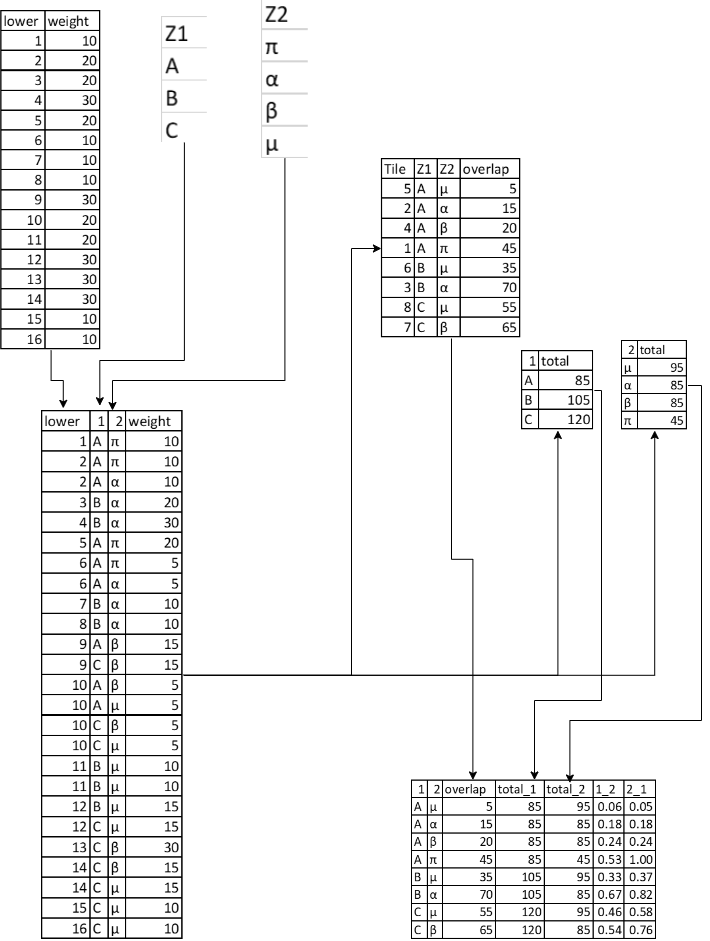

figure 3 - Example tables to go with the schematic example above. The rightmost two columns in the final table are the actual zone translation outputs.#

The inputs used in this example are included in the examples folder in the repo.

Point Handling#

If selected by the user, caf.space will treat features satisfying point criteria differently to other zones. These point zones may either be ‘true points’; features with point geometries which must be provided as a separate shapefile parameter in ‘zone_1’, and/or ‘zone_2’, or ‘pseudo points’; polygons in the primary shapefile for zone_1 or zone_2 whose area is below a user set threshold - point_tolerance.

Once these point features are separated from the rest of the zone system geodataframe, they are all assigned the geometry of the lower zone they lie within (n.b. this process assumed that point zones lie entirely within one lower zone. This is not currently checked for so if you get any unexpected results this should be checked). Once the point zones have their updated geometry a normal weighted translation is performed.

The logic behind this approach is that a point zone should only be used for features whose demand is completely out of relation with its size, like an airport. In this case it may be assumed that only a negligible amount of demand to that zone will not be accounted for by the point feature, so assigning all of the weighting to that feature makes a certain amount of sense.
