Graphical User Interface#

When launched, the gui will display a window as shown below:

../_images/guispace.png

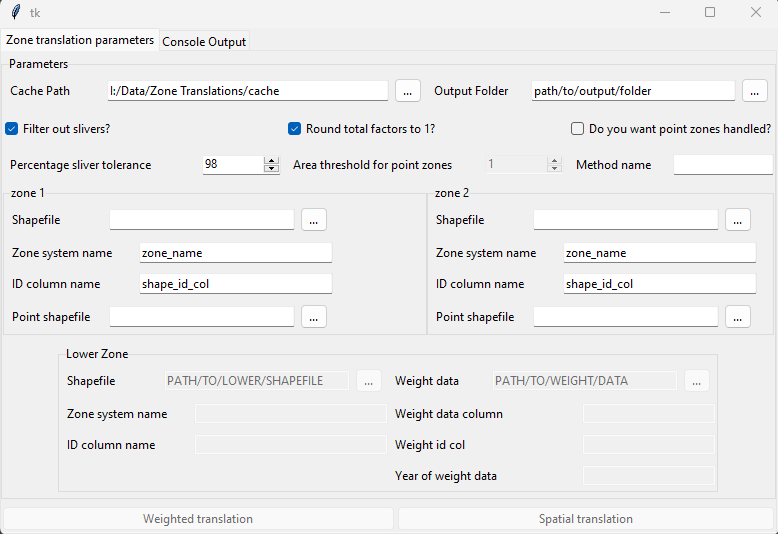

figure 1 - GUI main window#

Within this window the fields must be filled out in order to run the tool, with descriptions below for how to fill them in. There is also a ‘Console Output’ window, which will display messaged raised by the tool. This can be useful to check if a translation fails for some reason, as it will give information on which setting caused the issue, such as a path provided which does not exist.

Parameters#

The parameters in the gui are the same as running the tool in other ways:

  • Cache Path - This is where the generated translation will be saved automatically

  • Output Folder - This is where the translation will be saved for the user to pick up

  • Filter our slivers?: This decides whether any filtering will be done for very small overlaps

  • Round total factors to 1: This decides whether final factors will be normalised. It is recommended to keep this ticked

  • Do you want point zones handles?: This determines whether any zones will be handled as points. This will usually not be selected

  • Percentage sliver tolerance: The threshold for sliver filtering. As it is, any factors of 0.02 or less will be removed, and the remaining factors normalised to sum to 1

  • Area Threshold for point zones: If point handling is selected, this determines the area below which a polygon zone will be considered a point zone. This defaults to 1, which is very small and unlikely to pick up any polygons as points.

  • Method name: The name of the weighting method if using running a weighted rather than spatial translation. This must be provided to run a weighted translation.

  • Zone 1/2: The two zones a translation is being produced between:

    • Shapefile: Path to file containing respective zone.

    • Zone system name: The name of the respective zone system. This will determine column names and file name in output.

    • ID column name: The column containing ID in the input shapefile.

    • Point shapefile: Optional, a second shapefile containing point data as true points.

  • Lower zone: The zone system used for a weighted translation, see description of weighted translation for more info.

    • Weight data: A path to a csv containing weighting data, e.g. pop

    • Weight data column: The column in the weight data csv containing the weight data

    • Weight id col: The column in the weight data csv containing the id.

    • Year of weight data: The year the weight data is from, e.g. population data from the 2021 census.

  • Weighted translation: The button to run a weighted translation. All parameters must be provided for this.

  • Spatial translation: The button to run a spatial translation.
